How to Document Power Automate Cloud Flows with AI—Safely

An AI can turn a Power Automate definition into readable prose. It cannot tell you whether that prose is true, whether the connections still work, or what the business expects when the flow fails.

That is why “paste the JSON into an AI and copy the answer” is not documentation. It is a fast first draft with a fairly serious data-handling risk.

This guide shows a safer method for cloud flows. You will export a solution, remove sensitive details, ask an organisation-approved AI for a structured draft, and verify the result against the live flow. The finished document should be useful to the next owner at 08:30 on the morning the automation stops.

The short version

1. Put the cloud flow in a solution with its dependencies.
2. Export the unmanaged solution to a controlled working folder.
3. Make a redacted copy of the workflow JSON—never alter your recovery export.
4. Use only an AI service approved for that class of company data.
5. Ask for a draft in a fixed documentation structure.
6. Verify every branch, connection, owner, permission and failure path in Power Automate.
7. Store the approved document beside the solution source and assign an owner and review date.

If you cannot satisfy step 4, do not upload or paste the definition. Document the flow manually from the designer instead.

What Microsoft actually exports

Microsoft's solution export procedure says each exported workflow is represented by a JSON file in the solution ZIP's Workflows folder.

The solution is more than a wrapper around one flow. Microsoft says it should contain the components the flow depends on, such as connection references, environment variables and Dataverse tables. This is useful for application lifecycle management, but it also means an export can expose far more about your environment than the visible action names suggest.

Microsoft explicitly advises considering removal of environment-variable values before export. Treat the whole ZIP—and any extracted workflow definition—as internal technical information.

What the JSON can and cannot tell an AI

A workflow definition can usually reveal:

• the trigger and action sequence;
• conditions, loops, scopes and parallel branches;
• connector and connection-reference names;
• expressions, variables and configured values;
• retry and timeout settings stored in the definition; and
• references to sites, lists, mailboxes, endpoints or environment variables.

It usually cannot prove:

• who currently owns the flow;
• whether a connection is healthy;
• which licence each runner needs;
• what permissions the connection account has today;
• whether an endpoint or referenced column still exists;
• what production inputs actually look like;
• how often each branch runs;
• whether the business still wants the automation; or
• what the recovery decision should be after a partial failure.

That missing operational context is why AI-generated prose must be checked against the live flow, its details page and recent run history.

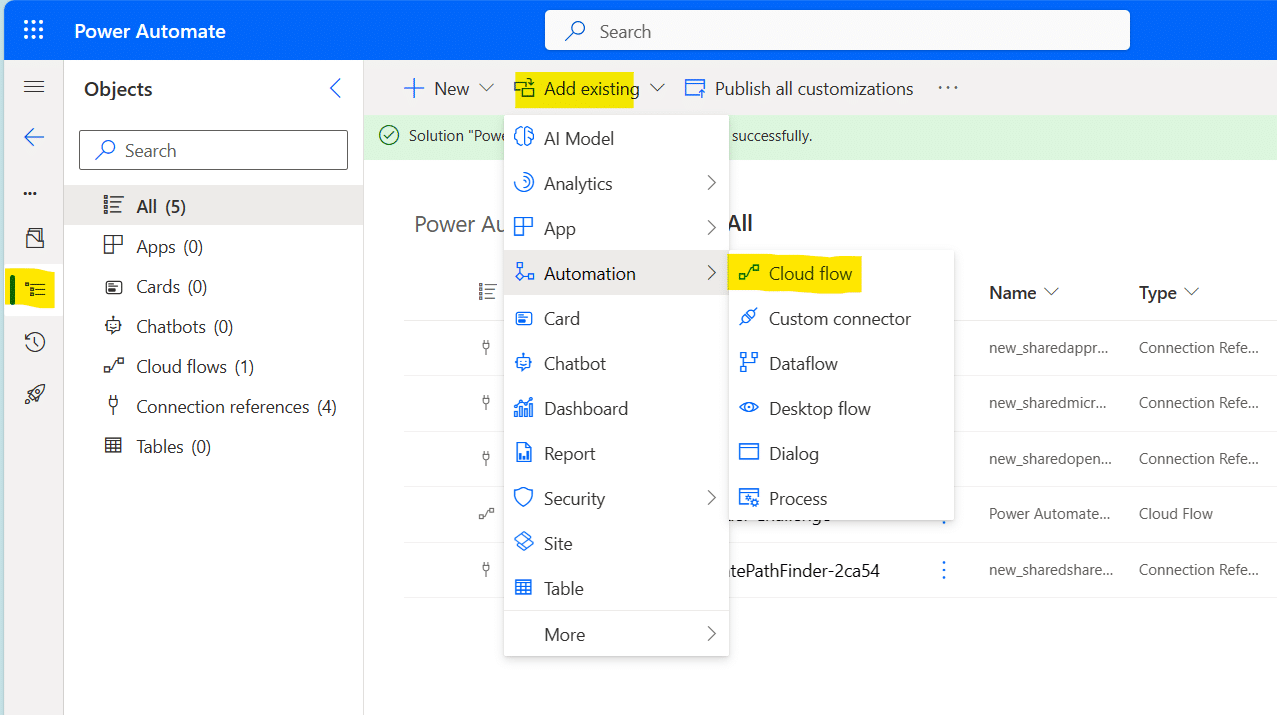

Step 1: prepare a solution-aware flow

If the flow is not already solution-aware, add it to an existing unmanaged solution or create an unmanaged solution for the automation.

Include the dependencies needed to understand and move it. At minimum, inspect:

• connection references;
• environment variables;
• child flows;
• Dataverse tables;
• apps or agents that call the flow; and
• flows or apps that the automation itself calls.

Do not convert a live flow casually. Take a normal backup and use your organisation's change process.

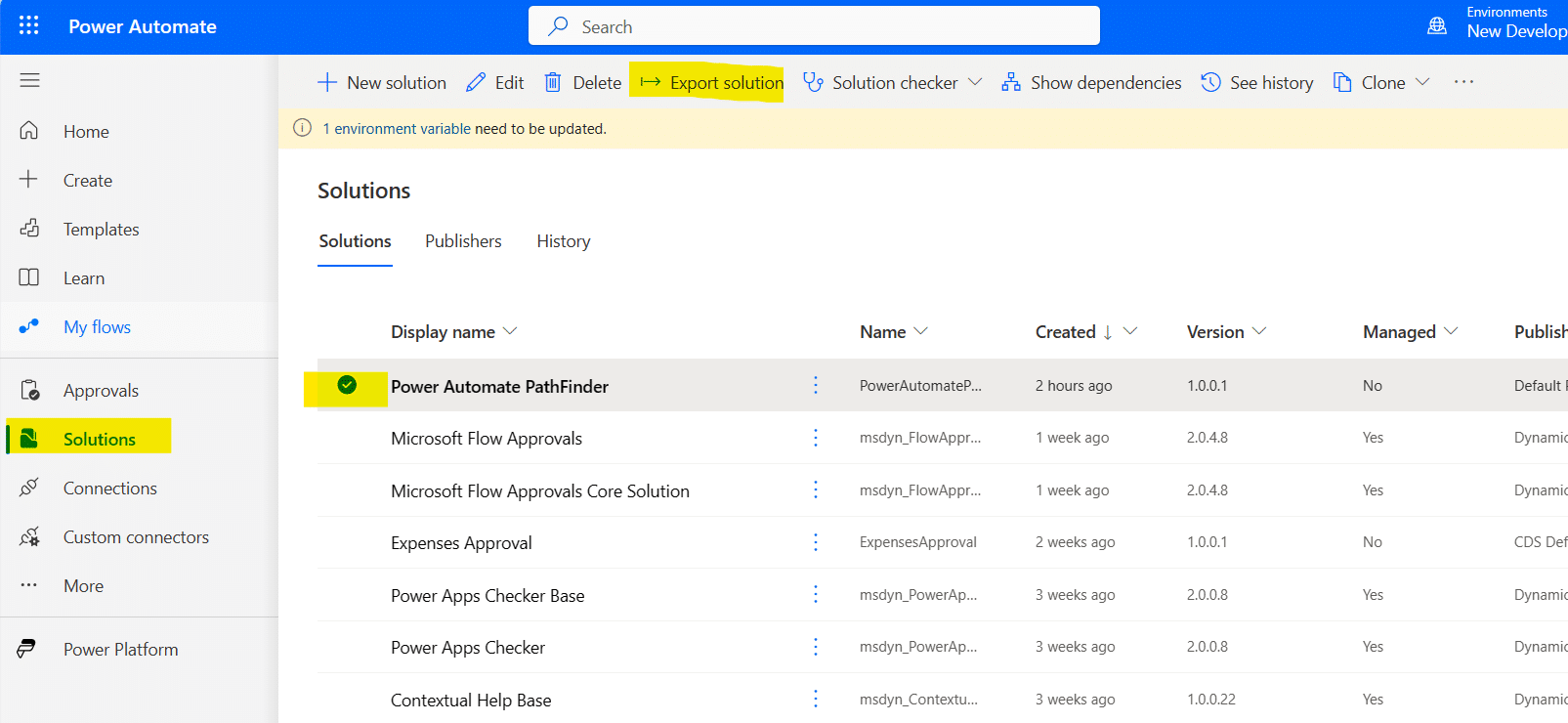

Step 2: export without damaging the source

In Power Automate:

1. Open Solutions.
2. Select the unmanaged solution.
3. Select Export.
4. Publish the intended changes and run the solution checker.
5. Export as Unmanaged for this documentation workflow.
6. Download the ZIP to an approved working location.

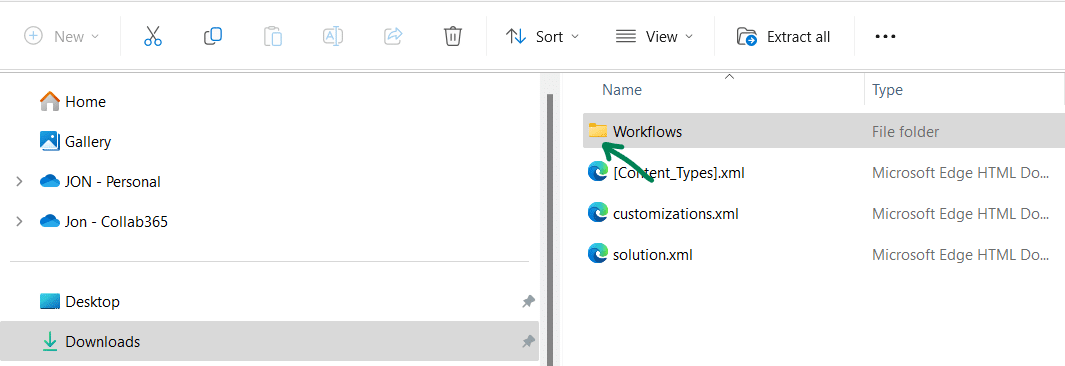

Keep that original ZIP unchanged. Extract a working copy and locate the JSON file in Workflows.

If the solution contains several flows, match the workflow file carefully. Do not assume the shortest filename belongs to the flow you want.

Step 3: make a redacted working copy

Do not paste the untouched definition into a consumer AI account.

Search the working copy for details such as:

• tenant, environment and subscription identifiers;
• SharePoint site, list and library names;
• mailbox addresses and Teams IDs;
• HTTP hosts, paths, headers and query parameters;
• connection-reference names that reveal systems or clients;
• environment-variable default or current values;
• expressions containing email addresses, IDs or business rules;
• sample payloads, file paths and personal data; and
• anything that looks like a credential, token or secret.

Replace each sensitive value with a consistent placeholder, for example:

<SHAREPOINT_SITE>
<REQUESTS_LIST>
<SERVICE_MAILBOX>
<EXTERNAL_API_HOST>
<CUSTOMER_ID_FIELD>

Consistency matters. If the same list appears five times, use the same placeholder five times. The AI can then explain the relationship without seeing the real name.

Redaction is not an excuse to upload information to an unapproved service. Your organisation's data classification, AI policy, contractual terms and regional requirements still decide whether the prompt is allowed.

Microsoft documents separate regional and admin controls for Copilot in Power Automate, including where generative-AI inputs and results may be processed. Those controls do not automatically apply to a third-party AI account.

Step 4: ask for a structured draft

Use a prompt that demands evidence boundaries instead of polished guesswork.

You are drafting technical handover documentation from a redacted Power Automate
cloud-flow definition.

Use only information present in the supplied definition. Do not invent owners,
permissions, licences, business intent, volumes, recovery steps or test results.
Mark missing operational facts as [VERIFY].

Produce these sections:
1. Purpose — one plain-English paragraph, marked [VERIFY] if inferred.
2. Trigger — event, source, conditions and inputs.
3. Connections and dependencies — connector, connection reference, site/table/list
   placeholders, child flows and environment variables.
4. Processing sequence — numbered actions, including conditions, loops, scopes and
   parallel branches.
5. Outputs and side effects — records, messages, files or updates created.
6. Error handling — configured run-after rules, retries, timeouts and terminate actions.
7. Security review — information visible in the definition; do not infer permissions.
8. Operational checks — a checklist of facts that cannot be proven from JSON.
9. Change-risk notes — hard-coded values, ambiguous names and tightly coupled steps.

Quote action and placeholder names exactly. If evidence is absent, say so.

Attach or paste only the approved, redacted working copy.

This prompt makes the most important AI behaviour explicit: uncertainty should remain visible. A confident sentence with no evidence is worse than [VERIFY].

Step 5: perform the human verification pass

Open the live flow and check the draft line by line.

Identity and ownership

• Who is the primary owner?
• Is there another suitable owner for continuity?
• Which account owns each connection?
• What happens when that person leaves or the account is disabled?

Trigger and inputs

• What really starts the flow?
• Are trigger conditions present?
• Which fields are mandatory in practice?
• Can the trigger deliver duplicates or out-of-order events?

Branches and expressions

• Does the document cover every condition branch, switch case and scope?
• Are expressions explained in business language?
• Are empty, null, date, time-zone and multi-value cases handled?

Connections and permissions

• Does each connection still show as healthy?
• Does it use a named person's account or a governed service identity?
• What minimum access does it need?
• Which premium or custom connectors are involved?

Failure and recovery

• Which actions retry automatically?
• Which paths run after failure, skip or timeout?
• Can a rerun duplicate an email, approval, file or record?
• How is the owner alerted?
• What should an operator inspect before retrying?

For flows that call slow or external services, our guide to Power Automate and API timeout errors gives a practical diagnostic route. If the design needs reusable blocks, see three current ways to copy and reuse Power Automate actions.

The documentation record to keep

The final document should contain facts that do not live reliably in the JSON:

Field	What to record
Business purpose	The outcome and the person who still wants it
Technical owner	Named role or team, not only the original maker
Trigger	Event, source, conditions and expected frequency
Connections	Connector, owning identity and minimum permission
Dependencies	Sites, lists, tables, child flows, apps and environment variables
Data	Input/output classes and any personal or confidential data
Failure path	Alert, triage owner, retry rule and duplicate risk
Recovery	Safe restart point and manual repair steps
Validation	Test cases and date last run by a non-owner account
Change history	Version, change, approver and rollback location
Review date	When ownership, connections and relevance are checked again

Store the approved document where future owners will look for the solution source—not in one person's downloads folder.

Do not confuse a description with documentation

Microsoft has a Copilot-generated description feature for Power Automate for desktop. That is useful for a summary, but a summary is only one field in a handover record.

A supportable cloud flow needs evidence about ownership, permissions, dependencies, monitoring, error handling, safe reruns and recovery. AI can accelerate the first draft. The operator still owns the truth.

A five-case verification set

Before approving the document, run or review evidence for:

1. one normal input;
2. one missing or blank optional value;
3. one input that takes the false or alternative branch;
4. one controlled downstream failure; and
5. one rerun or duplicate-trigger scenario.

Record the expected result and the actual run link or test evidence. Never manufacture a failure in production if it could send messages, change records or trigger billing—use a safe environment or controlled dependency.

Final handover checklist

• Original export kept unchanged in an approved location.
• AI input was redacted and allowed by policy.
• Generated text contains no invented owners, permissions or results.
• Every trigger, branch, loop and dependency is covered.
• Connection identities and minimum permissions are recorded.
• Alerts, retry behaviour, duplicate risk and recovery are explicit.
• A non-owner has followed the document successfully.
• Owner, version and next review date are present.

If you are responsible for flows that other people rely on, join the Microsoft Copilot & AI Mastery Space for practical, human-audited ways to use AI without handing it the keys to the building.

Frequently asked questions

Can I paste a Power Automate export into ChatGPT, Claude or another public AI?

Only if your organisation has approved that service and data class, and the working copy has been reviewed and redacted. A workflow definition can expose endpoints, identifiers, expressions, system names and environment values even when it contains no obvious password.

Does Power Automate Copilot document cloud flows automatically?

Copilot can help create and edit cloud flows, and Microsoft documents AI-generated descriptions for desktop flows. Neither feature replaces an operational handover record covering owners, permissions, dependencies, monitoring and recovery.

Must a cloud flow be in a solution before I document it?

No, but a solution gives you an exportable workflow JSON and makes dependencies such as connection references and environment variables easier to manage. Do not convert a production flow without normal change and rollback controls.

Is the exported workflow JSON a complete backup?

No. The workflow file is one component. A usable recovery package also needs the solution's dependencies, connection/environment configuration, source control or export history, and a tested import/recovery procedure.

How often should flow documentation be reviewed?

Review it after a material change and on a fixed operational schedule. Ownership, connections, permissions and business relevance can change even when the flow definition does not.
